Aperture 60x80mm Galvanized Gabion Wire Mesh 4×1×1m Preventing Rock Breaking

economy Aperture 60x80mm Hot Dipped Galvanized channel linings Gabion Wire Mesh

Gabion Wire Mesh Introduction:

Gabion Wire Mesh are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

Gabion Wire Mesh(Gabion Box Wire Mesh)diameter:

For hexagonal wire mesh with no pvc coating, the wire diameter ranges from 2.0mm to 3.0mm. While for those PVC coated hexagonal wire mesh, the outside diameter ranges from 3.0mm to 4.0mm. The wire which used in the outside frame edge is thicker than the hexagonal wire mesh uses

1.Material:
Low carbon steel wire, stainless steel wire, pvc wire, brass wire, electro-galvanized wire hot-dip galvanized wire, stainless steel coating, pvc coating etc.
2.Weave Method:
Straight twist, counter twist, double action twist,weave before galvanizing, galvanizing before weaving, and it could be divied into electro-galvanizing, hot galvanzing, plastic coating

3.applications:

Control water or flood,preventing rock breaking,water and soil protection,protecting .

4.Specifications:

material: low carbon iron wire
wire dia: 2.0mm--5.0mm
width of a roll:0.9m~1.95m
length of a roll:10m~50

5.Features:
>Economic. Just fill the stone into the gabions and seal it.
>Simple installation. No special technology needed.
>Weather proof under natural destroy, corrosion resistant.
>No collapse even under big scope of deforming.
>Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
>Less transport freight. It can be folded together for transport and further installation.

Gabion Wire Mesh Standard Specification:

We can produce the gabion baskets and revet mattress on a basis of various materials as follows.

Heavily zinc-coated steel wire conforming to ASTM A 641, Class 3 coating, soft temper;

Zn-5Al-MM-Coated steel wire conforming to ASTM A 856/856M, Class 3, soft temper;

The same type of metallic-coated steel wire as above, but with an additional PVC coating extruded onto the metallic-coated steel wire;

l Aluminum-coated steel wire conforming to ASTM A 809, soft temper;

The most popular wire diameter for gabion baskets is 2.7mm, 2.2mm for revet mattress.

Weaving:

a nonraveling mesh made by twisting continuous pairs of wires through three one-half turns(commonly called double-twisted) to form hexagonal-shaped openings which are then interconnected to adjacent wires to for hexagonal openings. The most popular mesh opening for gabion baskets is 80x100mm size, 60x80mm for revet mattress. During the process, a terminal wire will be used to edge the wire mesh perpendicular to the double twist by mechanically wrapping the mesh wires around it at least 2.5 times or by inserting it throughout the twists and folding one mesh length. We always use 3.4mm wire for gabion baskets, 2.7mm wire revet mattress.

Gabion Wire Mesh Feature:

• Economic: Just fill the stone into the gabions and seal it.

• Simple installation:No special technology needed.

• Weather proof under natural destroy, corrosion resistant.

• No collapse even under big scope of deforming.

• Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

• Good permeation can prevent the damage by hydrostatic.

• Less transport freight. It can be folded together for transport and further installation.

Gabion Wire Mesh Application:

• Control and guide of water or flood

• Flood bank or guiding bank

• Preventing of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• stabilization of earth movement and erosion

• canal refurbishment

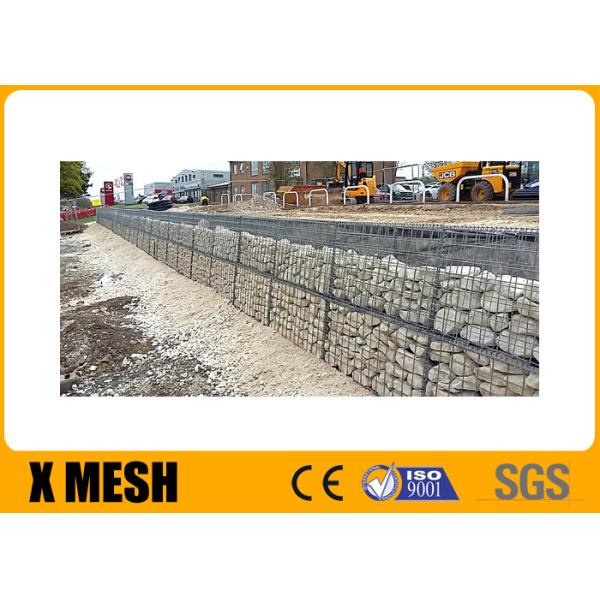

• landscaping and retaining walls.

Aperture 60x80mm Gabion Wire Mesh

60x80mm galvanized gabion baskets

galvanized gabion baskets 4×1×1m
